品牌：美國fisher費希爾

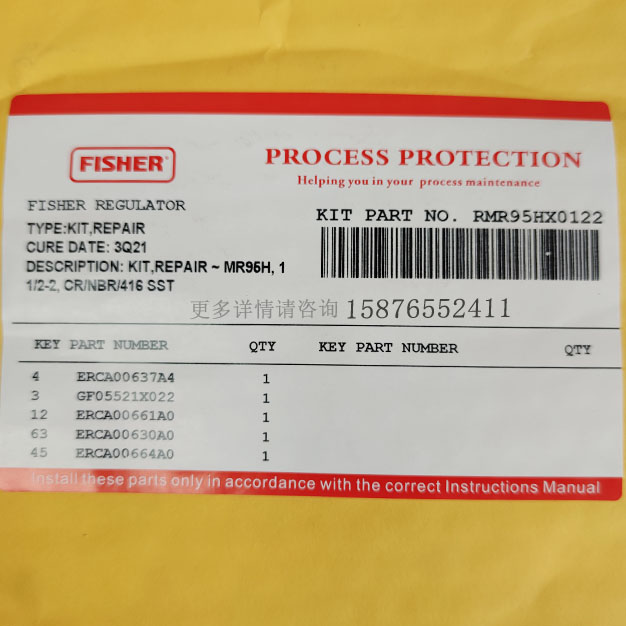

型號：RMR95HX0122
配件編號：

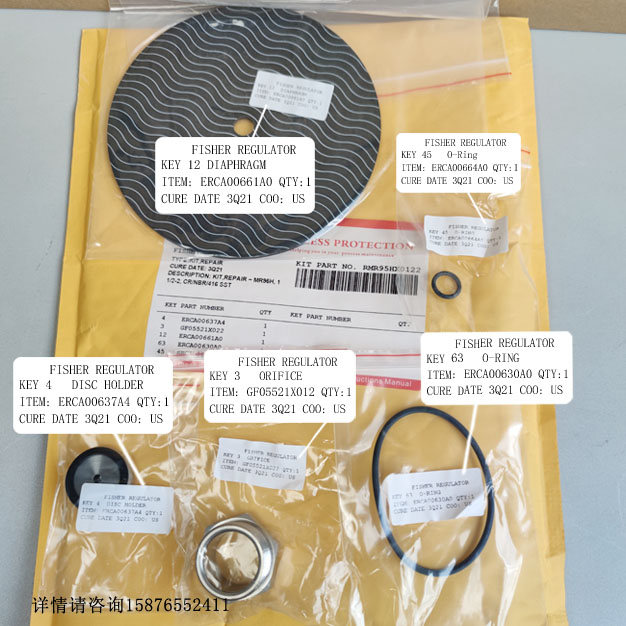

KEY PART NUMBER QTY
4 ERCA00637A4 1
3 GF05521X022 1
12 ERCA00661A0 1
63 ERCA00630A0 1
45 ERCA00664A0 1
適用于：MR95H-461 600R對應M95H-3063-3143300
如您需要更多產品資料，請咨詢我司客服人員(15876552411)索取相關電子資料
Primary Attributes
Type | = | MR95H |
Valve Size | = | NPS 2 |
Pressure Registration | = | Internal |
Body Material | = | WCC Steel |
NACE | = | No |
End Connection | = | 600RF |
Spring Range | = | 5 to 80 psi |
Spring Case Material | = | Gray Cast Iron |
Spring Case Tapping | = | 1/4NPT |
Trim Number | = | 10 |
Trim Material | = | 416SST |
Seat Type | = | Comp Seat |
Valve Disk Material | = | NBR |
Reduced Port Option | = | No |
Diaphragm Material | = | CR |
PTFE Protector | = | No |
Inter Pressure Gauge | = | None(No tap) |
Outter Pressure Gauge | = | None(No tap) |
Adkusting Screw/Handwheel | = | Adjusting Screw/Jam nut |
ATEX for Regulators | = | No |
Secondary Attributes
Orifice/Port | = | 1.142Inch/29mm |
Valve Plug Material | = | Npt App |
Valve Plug Guide Material | = | 316 SST |
Valve Disk Holder Material | = | 416 SST |
Seat Ring Material | = | 416 SST |
Inner Valve Spring Material | = | 302 SST |
Spring Case Bolting Material | = | Steel(Grade 5) |
Control Spring Part Number | = | ERCA04290A0 |
Internal Relief | = | No |
Vent Location | = | Over Outlet |
Bugproof Vent | = | Y602-12 |
Body Tappring(inlet/outlet) | = | None/None |
Max Inlet Pressure | = | 300psi(20.7bar) |
Max Outlet Pressure | = | 250psi(17.2bar) |
Temperature Range | = | -20to180 Deg F |
Approximate Shipping Weight(each) | = | 55lbs(25kg) |
Supplemental Attribute | = | Not App |
